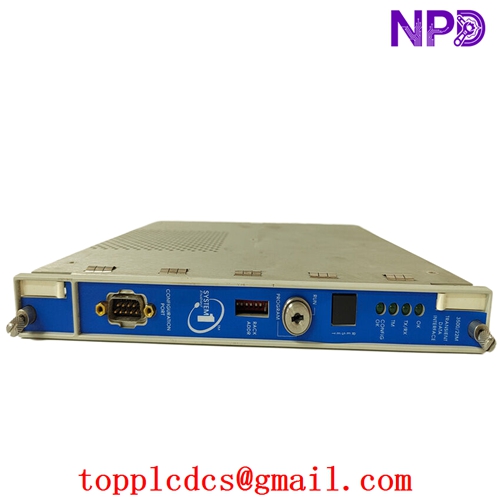

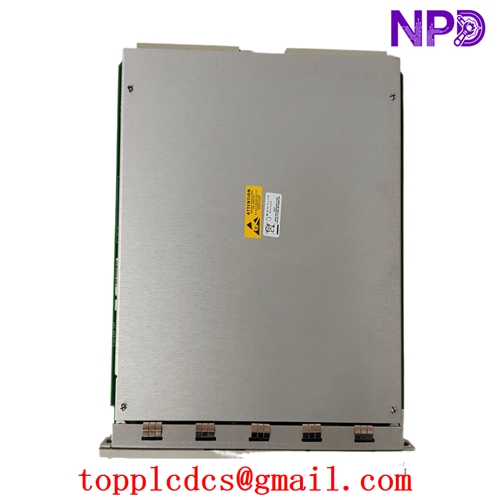

Description Manufacturer: Bently Nevada (Baker Hughes) Model Number: 3500/22M Part Number: 138607-01 Device Type: Transient Data Interface (TDI) Module Function: Serves as the primary gateway between the 3500 monitoring system and external software (System 1/3500 Configuration Software). Communication: Ethernet (10Base-T/100Base-TX), RS-232 configuration port Integration: Combines Rack Interface Module (RIM) functionality with dynamic waveform data acquisition. Operating Temp: -30 °C to 65 °C (-22 °F to 150 °F) Series: Bently Nevada 3500 Series Monitoring Systems The 3500/22M 138607-01 is a critical component of the Bently Nevada 3500 Machinery Protection System. It acts as the central interface that enables communication between rack-mounted monitoring modules and host software platforms. By integrating both steady-state data collection and high-speed transient (waveform) data acquisition, it provides essential insights for condition monitoring, vibration analysis, and machinery diagnostics. �� Comparison with Related Modules While the 3500/22M serves as the primary data interface, the 3500 system utilizes various other modules for specialized tasks. Unlike the standard RIM (Rack Interface Module), the 3500/22M includes advanced transient data capture capabilities required for predictive diagnostics. Bently Nevada 3500/22 3500/22M 138607-01 STANDARD TRANSIENT DATA INTERFACE MODULE DISCONTINUED Brand new Opens in a new window Bently Nevada 3500/20/25/40M/60/32/92 Rack Interface Module Opens in a new window Bently Nevada 3500/50 133388-02 I/O Module Opens in a new window ¥19,976 Opens in a new window ¥1,190,421 Opens in a new window ¥250,102 · Bently Nevada Opens in a new window Primary Function Primary FunctionTransient Data Interface/Gateway Primary FunctionRack Communication Interface Primary FunctionSpeed/Phase Monitoring Capability CapabilityWaveform/Static Data Acquisition CapabilityBasic Data Connectivity CapabilityTachometer Signal Processing   �� Recommended 3500 Series Components To build or maintain a full 3500 rack system, consider these commonly associated modules: 3500/15 (Power Supply Module) 3500/25 (Enhanced Keyphasor Module) 3500/32M (4-Channel Relay Module) 3500/40M (Proximitor Monitor) 3500/42M (Proximitor/Seismic Monitor) 3500/45 (Position Monitor) 3500/50M (Tachometer Module) 3500/60 (Temperature Monitor – Non-recorder) 3500/61 (Temperature Monitor – Recorder output) 3500/92 (Communication Gateway)
